PCB & Electronic Components
PCB and component identification during reflow, wave soldering and other heat-exposed manufacturing processes.
Polyimide High-Temperature Labels
High-Temperature
Polyimide Labels
Tanjor supplies high-temperature labels and tapes for demanding applications. From 300°C PI labels to Polyester high-temperature tapes, PI tapes and ESD label options, we support custom converting and precision die-cutting for labels and electronic materials.
Get Quote

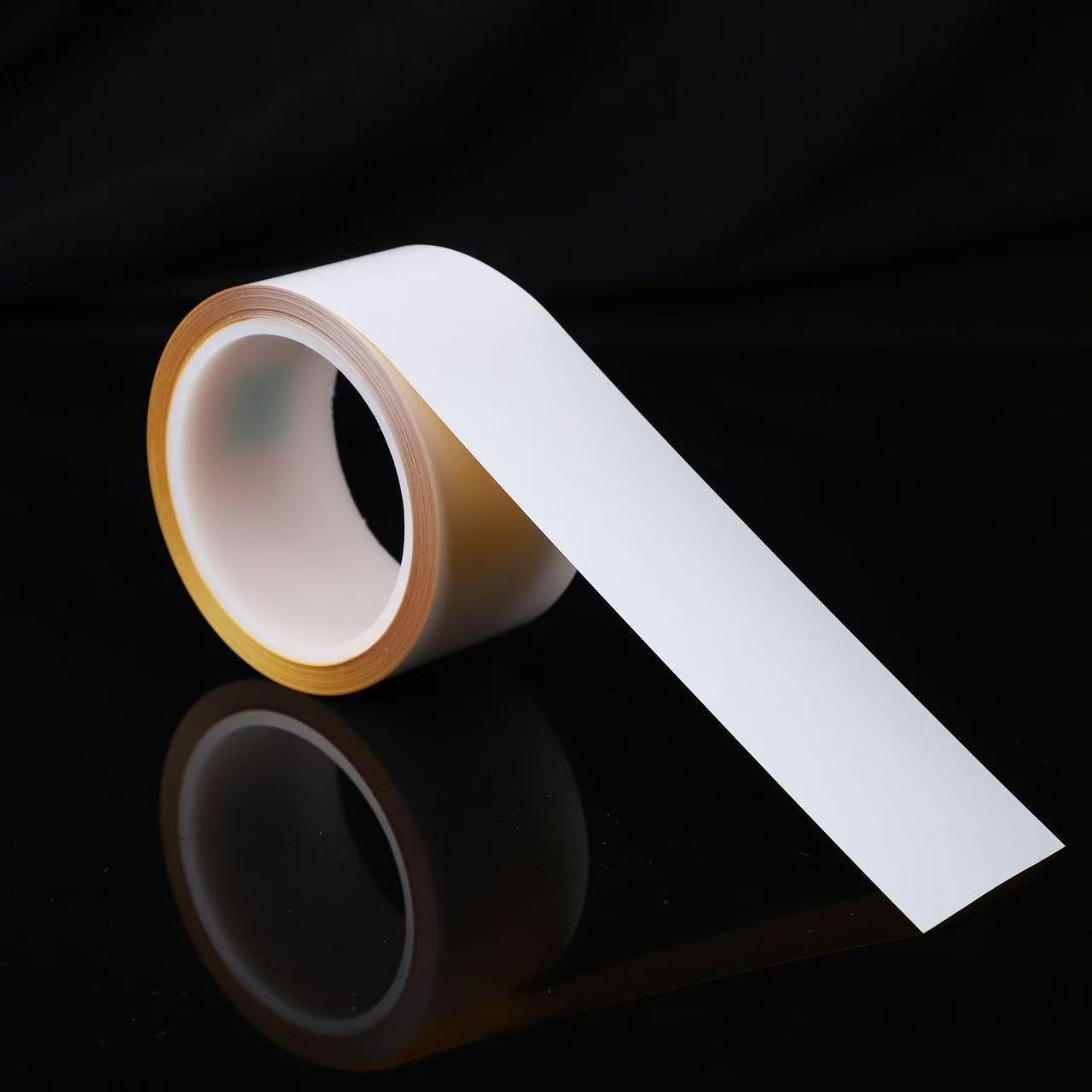

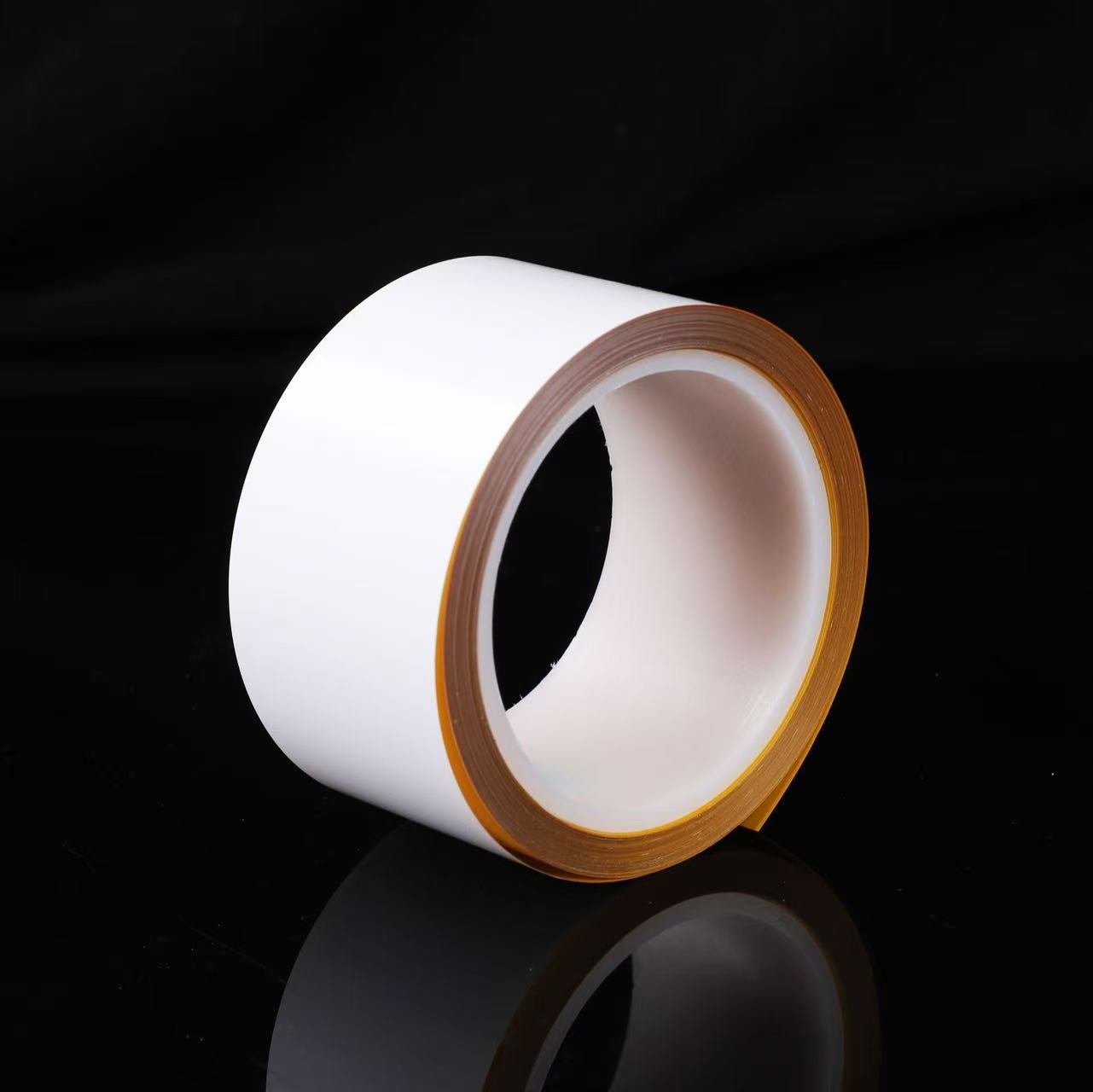

Tailored Polyimide Labels for Electronics
Polyimide (PI) label material with acrylic adhesive and a printable white surface for identification and traceability in electronics manufacturing.
Discuss PCB / SMT labels, mainboard identification, mobile-device labels and other heat-exposed tracking requirements. Select the construction, ribbon and printing process together.
300°C heat resistance*Chemical resistanceMechanical & UV resistancePrintability
*Reference construction shown below. Validate performance under your actual process conditions.
Trusted in Every Industry
Automotive Applications
Identification for components, engines and wire harnesses. Confirm the grade for heat exposure, fluids and service conditions.
Aerospace & Industrial
Discuss identification requirements for industrial equipment and demanding environments. Any sector-specific qualification must be confirmed separately.
Laboratory & Chemical
Process identification where heat or chemical exposure is relevant. Confirm chemical compatibility and any sterilisation cycle.
Tech Specification
| Base Film | Polyimide (PI), 0.035 ± 0.005 mm |
|---|---|
| Total Thickness | 0.08 ± 0.01 mm |
| Adhesive | Acrylic; coating 0.02 ± 0.005 mm |
| Peel Adhesion | > 0.6 kg / 25 mm |
| Temperature Range | −40°C to 300°C; 320°C × 10 seconds peak exposure |
| Voltage Resistance | ≥ 9 kV |
| Elongation | 55% |
| Insulation Resistance | 1.0 × 10¹⁵ Ω |
| Colour / Finish | White, matte |
| Standard Size | Width 500 mm × length 200 m; custom on request |
| Printability | Ricoh B110CR / B115C / D110A ribbon options; confirm printer and process compatibility |
Data transcribed from the supplied label landing-page reference. Typical values for the reference construction, not guaranteed limits for every grade. Confirm test methods, thickness tolerances, temperature exposure and application suitability before ordering.
White Ink / Printable CoatingMatte reference finish; glossy options on enquiry
Polyimide Film35 μm reference construction
25 μm or 50 μm film options on enquiry
25 μm or 50 μm film options on enquiry
Acrylic Adhesive0.02 ± 0.005 mm reference coating
Release LinerSilicone-coated paper
4-Layer Product Structure
Schematic only; not drawn to scale. Film options represent different constructions.
Need a Custom Polyimide Label?
Share label dimensions, print requirements, substrate, process temperature and quantity.
Samples, Specifications & Ordering
For a quotation, send your tape dimensions, required quantity, substrate and process conditions. Ask us to confirm sample availability, minimum order quantity, production lead time and the technical data sheet for the selected construction.
Request product documentation and a quotation →
