Electroplating & Anodising
Mask selected areas during electroplating and aluminium anodising. Check bath chemistry, exposure time and edge adhesion.

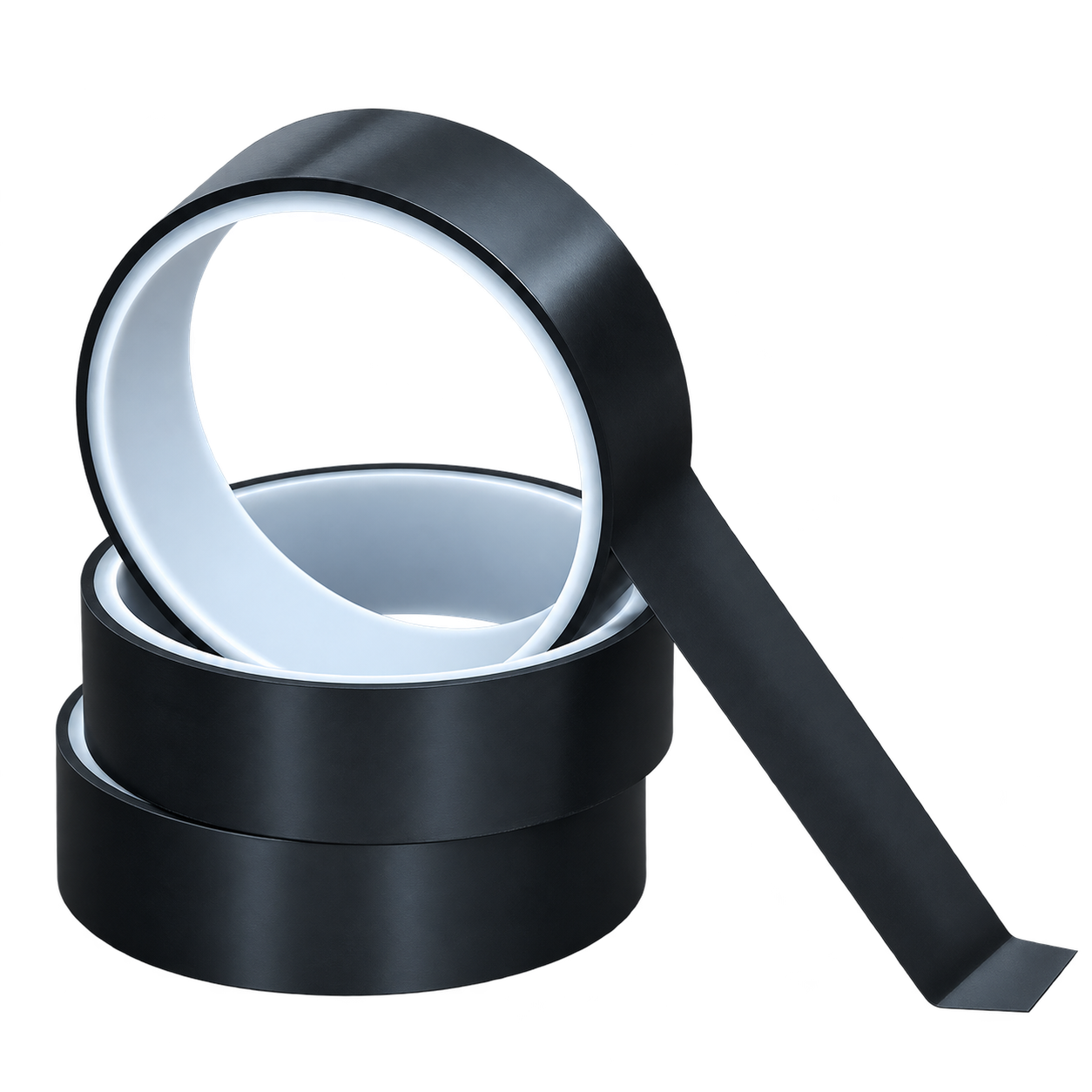

TANJOR · MATTE BLACK POLYIMIDE TAPE
Matte Black
Polyimide Tape.
25 μm polyimide film with a 25 μm silicone adhesive coating. A high-tack tape for heat-exposed masking and light-blocking applications, with 300°C resistance for 30 minutes stated for this construction.
Get a Quote
A Matte Finish.
A Defined Construction.
A black polyimide backing combines a matte appearance with silicone adhesive for process masking. The supplied construction specifies 25 μm film and a 25 μm adhesive layer.
Choose from eight listed roll widths to suit narrow masking areas or broader coverage. Share the surface and process conditions so we can help confirm the appropriate roll.
300°C / 30 min*Matte black finishSilicone adhesive33 m rolls
*Stated in the supplied product information. Check performance on your substrate under actual operating conditions.
Built for Your Process
Paint Baking & Spraying
Protect areas during spray coating and paint baking within the specified temperature and exposure time.
Motor Masking
Targeted masking for motor-related manufacturing processes, with roll width selected for the area being protected.
Light Blocking & Repair
Matte black tape for light-blocking locations and mobile screen repair, subject to fit and adhesion checks.
Tech Specification
| Base Film | Polyimide (PI), 25 μm |
|---|---|
| Adhesive | Silicone adhesive, 25 μm coating |
| Nominal Total Thickness | 50 μm, calculated from the stated film and adhesive layers; tolerance to be confirmed |
| Temperature Resistance | 300°C for 30 minutes, as stated in the supplied product information |
| Roll Length | 33 m |
| Widths | 5 / 8 / 10 / 20 / 25 / 30 / 40 / 50 mm |
| Colour / Finish | Matte black |
| Adhesion | High tack; numerical peel adhesion not specified |
| Main Applications | Electroplating, paint baking, spray coating, aluminium anodising, motor masking and light-blocking / mobile screen repair applications |
Based on the supplied matte black tape specification. The 50 μm total is a calculation, not a separately measured value. Confirm tolerances and process suitability before ordering.
Matte Black PI Film25 μm polyimide backing
Silicone Adhesive25 μm adhesive coating
2-Layer Tape Construction
Nominal 50 μm combined thickness.
Schematic only; not drawn to scale.

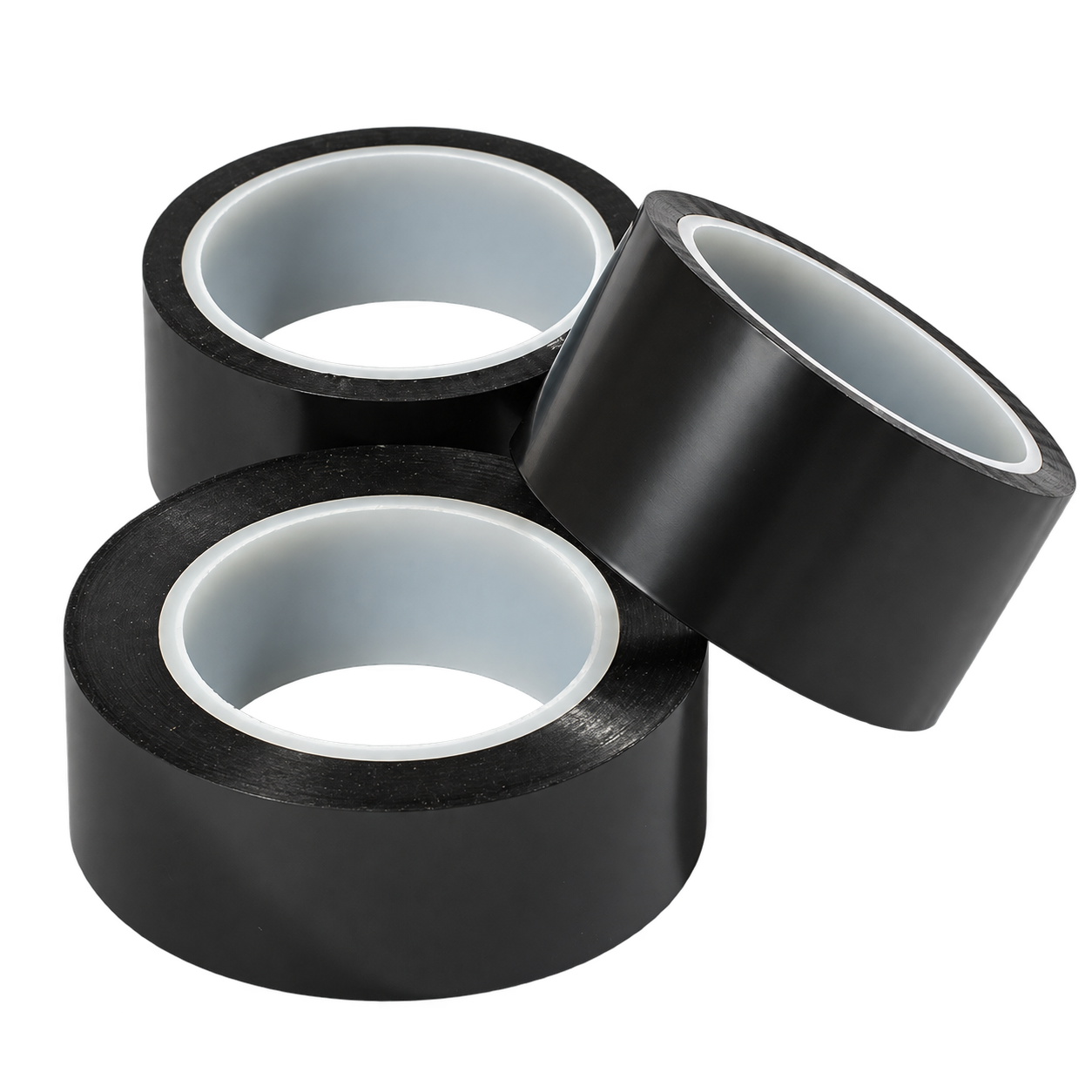

ROLL OPTIONS
The Width Your Work Needs
Listed widths: 5, 8, 10, 20, 25, 30, 40 and 50 mm, supplied in 33 m rolls.
For another width, length or construction, send your requirement so availability can be confirmed. Include the substrate, working temperature, exposure time and order quantity.
Discuss Your SpecificationCheck It in Your Process
Trial the tape on the actual surface and assess adhesion, edge masking and removal after the full processing cycle.
Request the Relevant Data
Let us know if you need peel adhesion, electrical insulation, residue testing or compliance documentation for your purchasing requirements.
Have a Matte Black Tape Requirement?
Share your dimensions, process conditions and quantity.
Samples, Specifications & Ordering
For a quotation, send your tape dimensions, required quantity, substrate and process conditions. Ask us to confirm sample availability, minimum order quantity, production lead time and the technical data sheet for the selected construction.
Request product documentation and a quotation →
